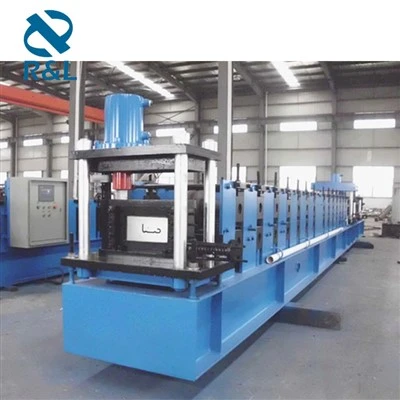

J&R cable tray manufacturing machine is controlled by PCL program, so the reaction speed is fast and sensitive. The machine body is made of high-quality steel by precision welding. The machine has high automation degree, good performance, but low cost, so it has good cost performance. The machine has two operation methods, automatic control and manual control, to meet different working environments. It is also equipped with an emergency stop device to ensure the safety of the operator. The surface is treated, so it is not easy to rust.
Main Features
* All lines are wrapped with insulating materials to avoid accidents.
* There are a variety of specifications and models, which can also be customized to meet customer needs.
* The machine is highly automated, so it is easy to operate.
* All machines are subject to strict quality inspection, so the quality is guaranteed.
Production Line Components And Parameters
1. Decoiler: 1 set
Capacity: 5000kg
Width: 600mm
Inner Diameter: 450-550mm
Outer Diameter: 1500mm
Type: Hydraulic or Manual (optional)
2. Cutting System: 1 set
Type: Hydraulic Cutting
Power: 7.5kw
Material for cut-off modular: Cr12 steel after treatment
Driven: 1.5-inch chain
3. Roll Forming: 1 set
Roller material: cold rolled steel sheet
Material thickness: 1-2mm
Rollers: 22 groups
Material for rollers: GCr15 steel after treatment
Hardness for heat treatment: HRC 58-62
Frame: panel thickness: 20mm
Bottom frame: 40# H-section steel
Motor power: 11kwx2
4. Control System: 1 set
Type: PLC frequency control system with
Encode Brand: Omron
Length error: +/-2mm
5. Hydraulic Pump: 1 set
Power: 3kw
Oil type: 3kw
Oil type: 46# hydraulic oil
Pump Brand: China brand
6. Output Table: 1 set
| Quantity of forming rollers stations | About 22-24 stations |
| Diameter of forming rollers shafts | 90mm |
| Roll forming speed | 10-15m/min |
| Production speed | 4-6m/min |
| Forming rollers material | GCr15 mould steel, with quenched treatment |
| Cutter material | Cr12 mould steel with quenched treatment |
| Control system | Panasonic PLC and Yaskawa converter |
| Electric power requirement |
Main power: 4x5.5kw Hydraulic unit power: 5.5kw |
Cable Tray Profile Drawing
