Downspout roll forming machine, also known as downpipe roll forming machine, downspout forming machine, or gutter downspout machine, is a type of equipment used in manufacturing gutters and downspouts. It is designed to produce high-quality, seamless downspouts and has become a popular solution for both residential and commercial construction projects.
The function of downspouts is to drain rainwater from roofs and walls to keep buildings dry and healthy. Downspouts not only help protect building materials and beautify the appearance of the building. They can also reduce the maintenance costs of the building.
Wuxi J&R Roll Former Co., Ltd. has a comprehensive product line of downspout roll forming machine for sale, including round downspout machine and rectangular downspout machine. Welcome to get more info for downspout forming machines from us.
Features and Advantages
* Fully automatic continuous downspout making machine for round downspout and rectangular downspout under mass-production. Forming speed is about 6-8m/min.
* The roller has good hardness and wear resistance, which helps to extend the service life. The simple roller type is easy to manufacture and repair.
* The machine has stable forming and strong adaptability, suitable for various downspout production needs.
* Prompt delivery for the downspout roll forming machine is available
Production Line Components and Parameters
| Equipment List | |
| Decoiler | 1 pcs |
| Downspout Forming Machine | 1 pcs |
| Collection Table | 1 pcs |
| Main Technical Information | |
| Decoiler | Passive,double support ,Max loading weight: 3T |
| Unfold Width | Up to the tube size |
| Thickness | 1.5mm |
| Forming Speed | 6-8m/min |
| Forming Station | 18 |
| Frame | 36# I steel welded |
| Main Shaft | |
| Material | GCr15 |
| OD | 70mm |
| Roller | |
| Material | GCr15 |
| The single surface of Cr electroplating rollers | 0.05mm |
| Wall Thickness | 18mm |
| Chain | |
| Name | Bush roller chain |
| Model | 20A-1 |
| Chain Material | High quality 45# steel |
| Heat Treatment | HRC45-50° |
| Motor - Famous brand in China | |
| Power | 7.5KW (1 pcs) |
| Original | China |
| Hydraulic Cutting power | 2.2KW |
| PLC | Panasonnic |
How Downspout Roll Forming Machine Work

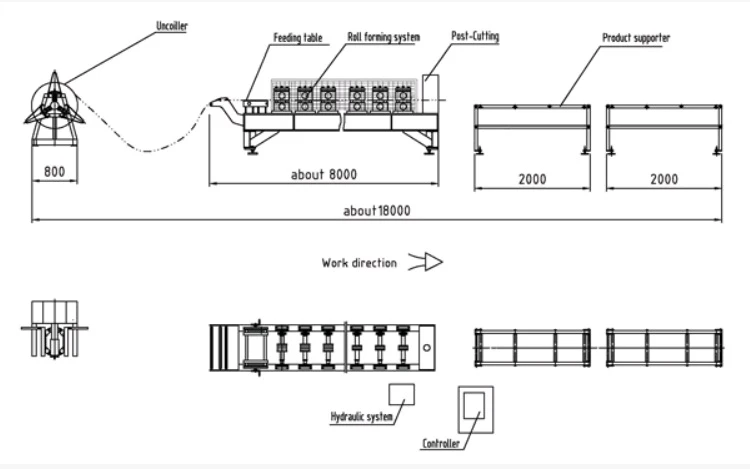

Working Flow of Downspout Roll Forming Machine
Coiler (passive/automatic) - Front Shear (optional) - Feed and Guide Table - Roll Forming System - Post - Cut To Length (hydraulic) - Output Bracket
Downspout Project Cases
Downspouts can help protect building materials, especially in rainy seasons or humid environments. They can guide water from the roof and walls to the ground, preventing moisture from penetrating into the interior of the building, and improving the service life and quality of the building.
The installation and maintenance procedures of downspouts are simple and easy to implement. Modern downspouts are made of a variety of materials. Downspouts of different materials and colors can be selected to match the appearance and color of the building, making the building more visually appealing and increasing the beauty of the building.
