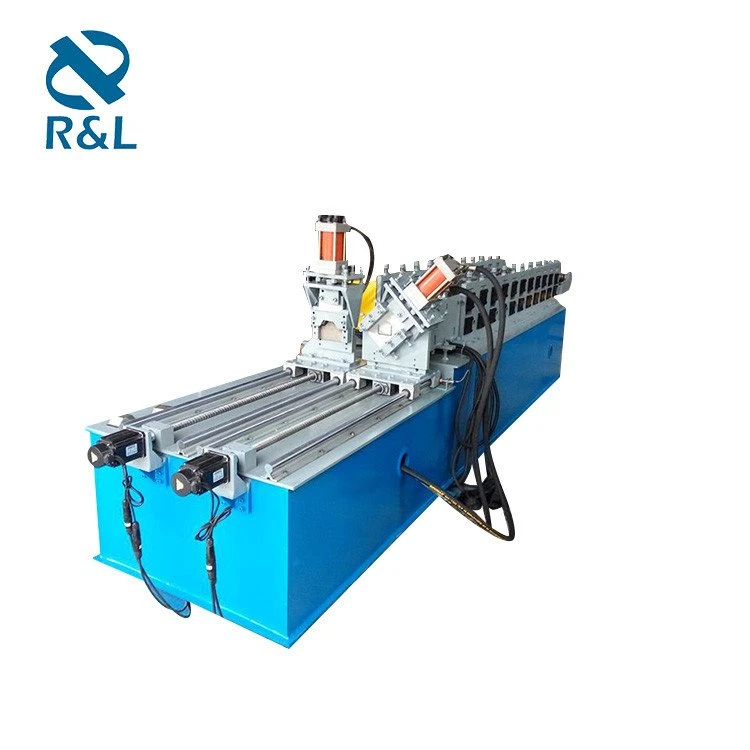

Steel frame rollformer is used to produce various sheets and is widely used in various industrial factories, warehouses, supermarkets, shopping malls, and other places. This steel frame roll forming machine has fast production speed and high production efficiency, so it is deeply loved by customers. High degree of automation to improve production accuracy. Moreover, a high degree of automation can ensure the uniformity of the steel frames produced, and they will not become larger or smaller. We have been engaged in production and operation for many years, with rich experience and mature technology, so we can improve the best products and services for you.
Features
1. High automation to achieve low error, high precision, and high efficiency, while reducing labor costs.
2. The entire appearance is very sturdy, which can counteract the vibrations generated during production, thereby extending the product's service life.
3. The outer surface of this Steel Frame Rollformer is firm, with good corrosion resistance and waterproofing.
4. Capable of producing steel frames of different specifications, sizes, and thicknesses to meet the needs of different industries.
|
Description |
Specification |
|
Roll Forming Machine |
Double door frame |
|
Material width |
3 sizes. Waiting for buyer exactly profile |
|
|
Option: by PLC (It can be adjust by PLC and also in hand wheel) |
|
Base frame |
Base frame 20 mm thick steel plate process the surface on CNC planer to keep it leveling and drill bolts and key slot by CNC |
|
Rolling Speed |
12-15m/min (not include cutting time) |
|
Rolling Thickness |
1.2-2.0mm or as per request |
|
Material |
GI or metal or as per customer request |
|
Control System |
PLC (Panasonic) as list in the note |
|
Un Coiler |
3 ton manual decoiler |
|
Leveling |
Up in 3 roller, down in 4 roller |
|
Roller Stations |
About 20 stations |
|
Roller Material |
Gcr15, coated with chrome HRC58-62 degree |
|
Shaft Material and DIA |
¢70mm, material is 45# forge steel |
|
Maim Motor Power |
11kw brake motor |
|
Hydraulic Station Power |
5.5kw |
|
Hydraulic Pressure |
20Mpa |
|
Capacity of tonnage for punching |
22Tons |
|
Hydraulic pump brand |
Famous Brand in China |
|
Bearing brand |
Harbin |
|
Other brand list |
PLC: Panasonic |
|
Punching |
3 units pre-punching and one unit cutting & punching include including 6 set 45 degree angle moulds. |
|
Cutting |
Hydraulic post-cutting for cut end product |
|
Extra cutter |
One more cutter for each profile |
|
Material Of Cutting |
Cr12Mov quenching 58-62ºC |
|
Electric Source |
380V, 60HZ, 3 phase |
|
Way Of Drive |
1.2 inch single chain |
|
Color Of The Machine |
Yellow and blue |
|
Machine Type |
Iron Cast |
|
Emergency switch |
In main machine and control panel all have emergency switch for forbid any urgently accident. |
|
Protect cover |
Complete mobile safty cover from roll forming to the cutter |
|
Size of the machine |
L*W*H 12m*1.2m*1.2m |
Profile Drawing
As per customer request
Process Drawing
