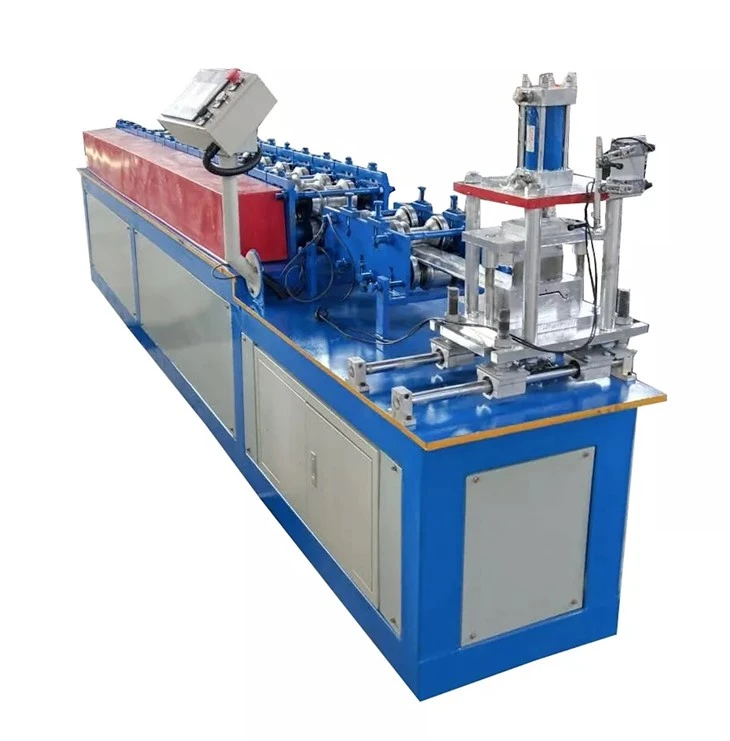

J&R door frame making machine is a highly advanced manufacturing machine that is used to produce high-quality roller shutter door frames in bulk. This door frame roll forming machine is designed to shape and form steel coils into a finished product with minimal waste and maximum efficiency. These shutter door frame profiles can be customized to meet specific requirements, our machine with highly versatile and adaptable to a wide range of manufacturing needs.
The operator can use the touch screen to select the preset program to make the whole production line run automatically. The door frame making machine is fully automatic, so the operation is very simple, which greatly saves manpower and material resources. The machine is equipped with an emergency stop switch in case of emergency. Fully automatic computer operation, fast response. This door frame roll forming machine has stable performance and runs smoothly without noise. The machine has undergone fine surface treatment, so it is not easy to rust. Our shutter door frame roll making machines have passed the quality test before leaving the factory.
Features & Benefits
* Door frame making machine has reasonable structure, so it has low noise, durability and long service life.
* Every link has been checked layer by layer, so the quality is guaranteed.
* Good mechanical performance, high production efficiency, and easy to operate.
* We provide a one-year warranty period to ensure that you have a fully functional product.
Technical Parameters
| Decoiler | Loading capacity: 5T Inner diameter: 470-530mm Steel coil width:914,1000,1220, 1250mm.According to your actual drawing. Working speed: 0-15m/min, adjustable |
| Cutting System | Material of blade: Cr12MOV, much better than normal Cr12 material Hydraulic power:3KW |
| Feeding Table | It is used to control the width and position of the steel sheet. The sheet is queued into the machine in the correct position, to make sure the panel is neat and parallel. |
| Forming Rollers |
Material: High grade 45# steel Roller station: 11-16 stations as per your drawing |
| Main Frame |
Material: 350 H steel Feature: more stable, no shaking |
Details of Door Frame Making Machine
|
Rollers High-quality rollers will help to produce a beautiful and high-quality profile. That will satisfy your customers. Using a high-quality thick shaft, the strength is more durable |
 |
 |

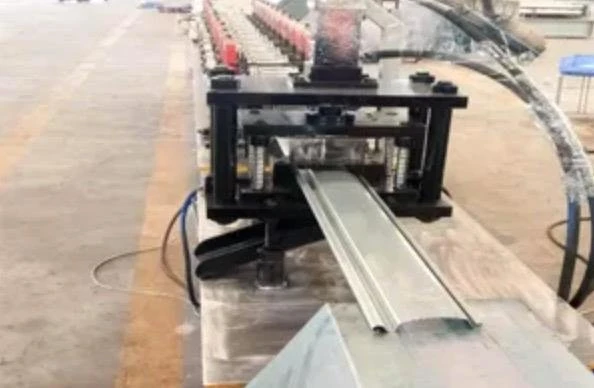

Main Machine The main body of body without welding, all the use of cast steel, prevents the host body from deformation. |
|
PLC Control System Usually, we provide the Delta PLC control system, but we can make that according to your need. |
 |
